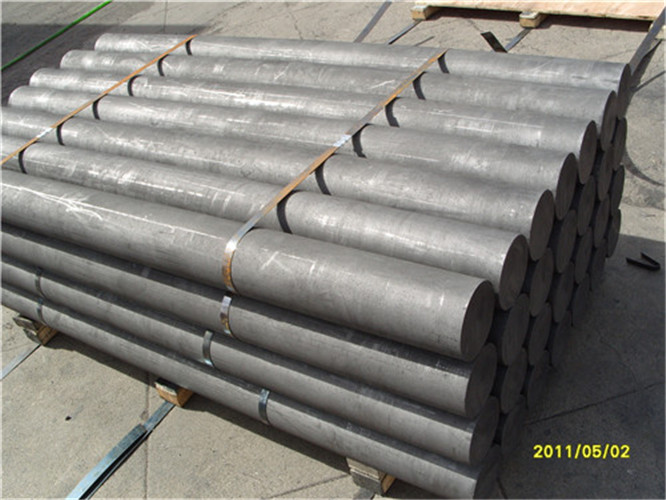

EXTRUDED GRAPHITE

EXTRUDED GRAPHITE

INQUIRY DETAILS *

Product Detail

Product Tags

Size mm

Untrimmed Surface

Size mm

Trimmed Surface

Φ47×600/1300

Φ38×600/1300±100

Φ52×1300

Φ40-45×1300±100

Φ57×1400

Φ45-50×1400±100

Φ65×1000

Φ50-57×1000±100

Φ75×1000

Φ65-68×1000±100

Φ87×1000/1900

Φ76-78×1000/1900±100

Φ98×1900

Φ82-86×1900±100

Φ115×1300/1600/1700/1800/2100

Φ105-109××1300/1600/1700/1800/2100±100

Φ130×1100

Φ115-120×1100±100

Φ135×1750

Φ125-130×1750±100

Φ144×1750

Φ130-135×1750±100

Φ164×1600/1750/1900/2400

Φ153-157±3×1650±100

Φ196×1750

Φ177-182×1750±100

Φ215×1750/1800/2100/2400

Φ203±3×1650±100

Φ245×1850

Φ225-232×1850±100

Φ267×1800

Φ253±3×1700±100

Φ318×1850

Φ303±3×1800±100

Φ369×1850

Φ353±3×1800±100

Φ420×1850

Φ403±3×1800±100

Φ470×1850

Φ452±3×1800±100

Technical Data of Extruded Graphite


Electrical Resistance

(μΩm)

Max

Flexible StrenghtMpaMinModulus of
elasticity
GpaMax

Bulk
Density

g/cm3

Min

CompressiveStrenghtMpaMinAsh
Content
%Max
Grain SizeMM
ECG-2

9

9.8-10101.58-1.6225-300.30.8
ECG-3

7.5

15141.68-1.72450.30.8

Remark: Diameter is less thanΦ75, grain size is 0.5mm. Also, size could be changed to 2mm.
